SSA Performance

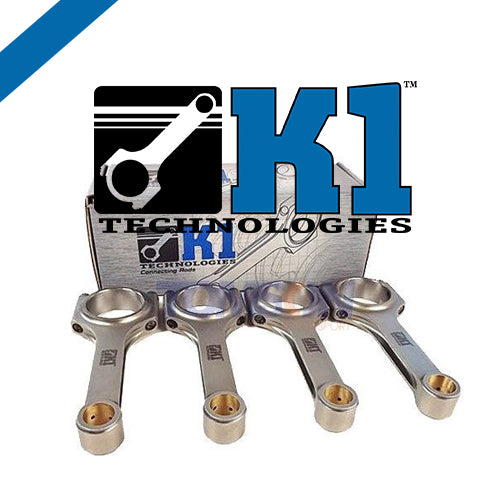

K1 H-Beam Connecting Rods-Mazda MX5
K1 H-Beam Connecting Rods-Mazda MX5
Regular price
£570.00
Regular price
Sale price
£570.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
K1-028CC14133

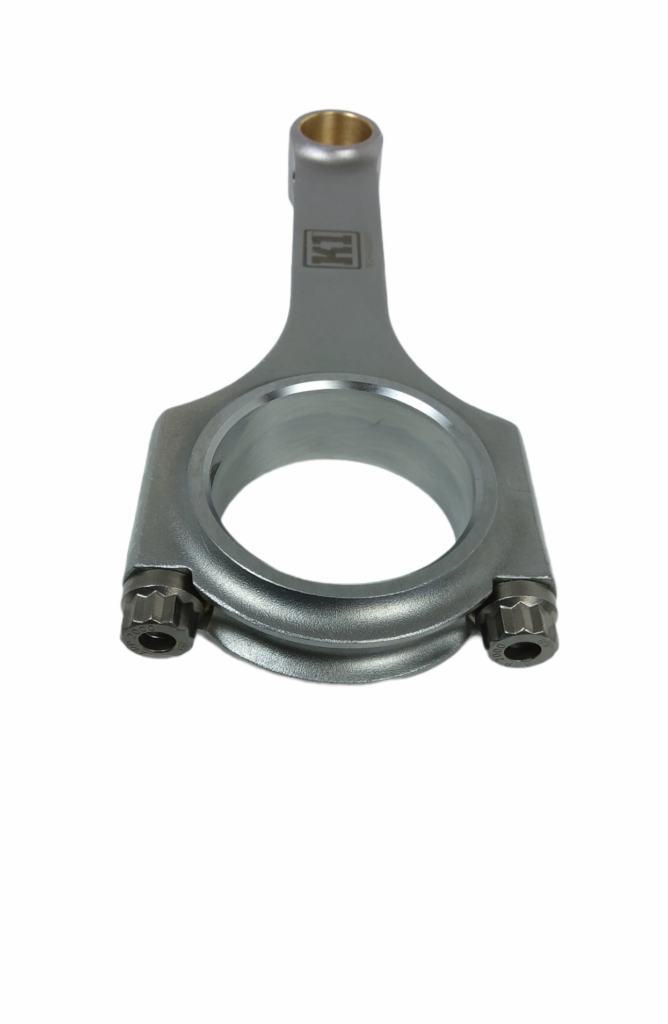

Billet 4340 Steel H-Beam Design. High Quality ARP 2000 Fasteners included. Shot peened finish provides for longer life. Premium bronze wrist pin bushings. All rods are finished in the USA and held to very tight tolerances. Bores finished to +/- .0001″ and weight to +/- 1 gram per end. Floating wrist pin style.
Material Forged 4340 Steel
Length 133mm
Big End Diameter 48.009 mm
Big End Width 21.84 mm
Wrist Pin Bore Diameter 20 mm
Wrist Pin Journal bushing Width 21.84 mm
Wrist Pin StyleFloating
Rod TypeH-Beam
Rod QuantitySold as a set of 4
Weight (grams)490
Stroker ClearanceNo
