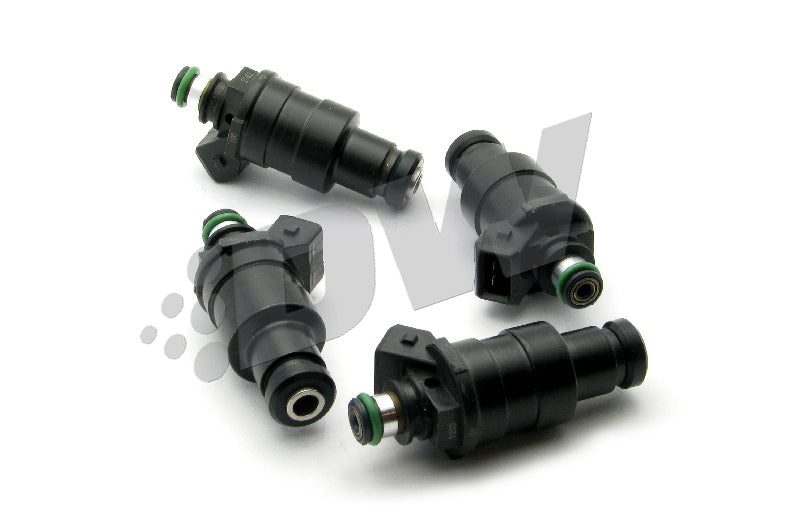

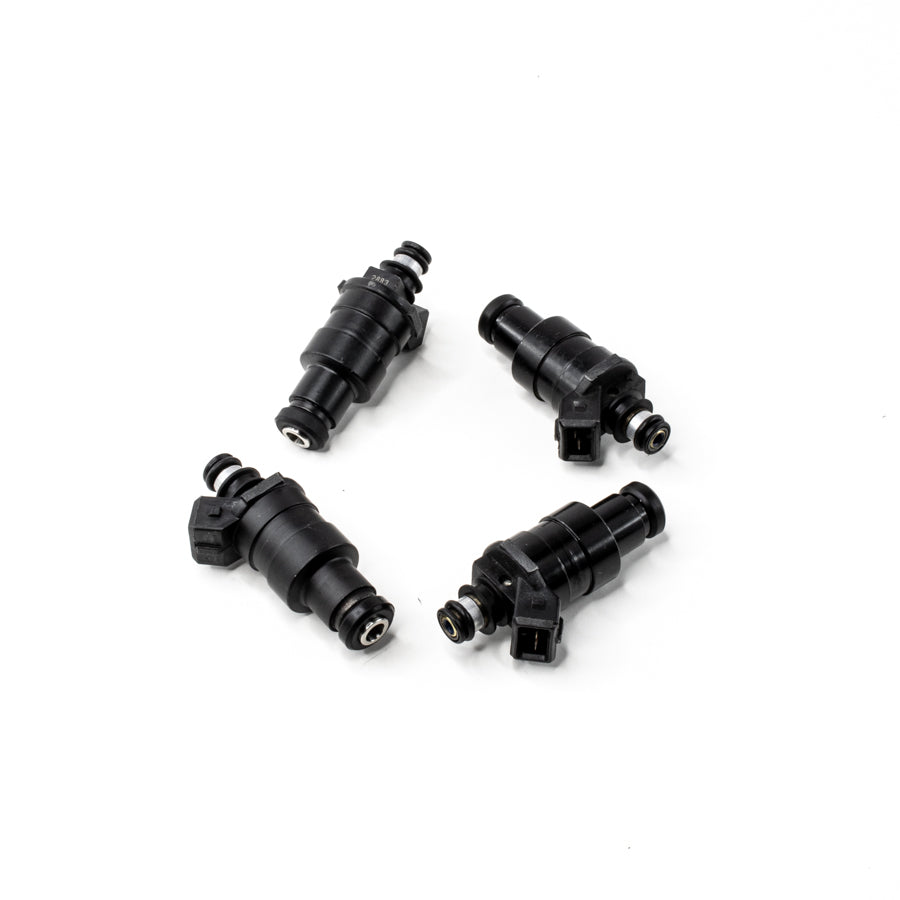

DeatschWerks set of 4 injectors 550cc/min (low impedance) Fits Mitsubishi Lancer Evolution VIII

DeatschWerks set of 4 injectors 550cc/min (low impedance) Fits Mitsubishi Lancer Evolution VIII

£364.80
£364.80
Sale Sold out
Tax included.

42M-02-0550-4

Product description

Set of 4 550cc Low Impedance injectors for Mitsubishi Eclipse (DSM) 4G63T 95-99 and EVO 8/9 4G63T 03-06.

Note: For the Eclipse (DSM), these 550cc injectors are an upgrade from OE. For the EVO 8/9, these 550cc injectors are OE replacements. They do not flow more than the EVO 8/9 OE injectors.



All DeatschWerks injectors feature the following:

  • E85 compatibility
  • Flow rates and set balancing in-house by DeatschWerks
  • Flow balanced to within 1-2% (flow report included)
  • Excellent spray pattern and atomization for optimized idle and tuning
  • Technical assistance and tuning data available via phone or email
  • 3-year comprehensive warranty

Matched set of 4 injectors 550cc/min (low impedance)



Fuel Pressure Range 40-100 psi
Minimum Pulse Width 1.0 ms
Maximum Duty Cycle 88%
Coil Impedance 2.4 ohm
Injector Type Lucas low impedance
Connector Type Minitimer



Nominal Static Flow Rate



PSI > 43 58 70 80 90 100
cc/min 536 617 683 726 774 816
lb/hr 51.0 58.8 65.0 69.1 73.7 77.7

Please note: Flow rates listed are the nominal (normal minimum) rates for this injector part number. All sets are flow balanced. For actual flow rates of your set, please refer to the flow report that will accompany your order.



Offset in Milliseconds (Pressure vs Voltage)



PSI >
VOLTS v		 43 58 70 80 90 100
8 1.02 0.95 1.09 0.99 1.09 1.19
9 0.78 0.80 0.90 0.86 0.88 0.87
10 0.55 0.70 0.81 0.65 0.72 0.77
11 0.43 0.59 0.59 0.51 0.59 0.63
12 0.36 0.54 0.45 0.44 0.53 0.54
13 0.26 0.44 0.41 0.40 0.45 0.44
14 0.09 0.37 0.36 0.30 0.37 0.36
15 0.03 0.27 0.26 0.25 0.32 0.28
16 -0.02 0.17 0.20 0.14 0.23 0.22
