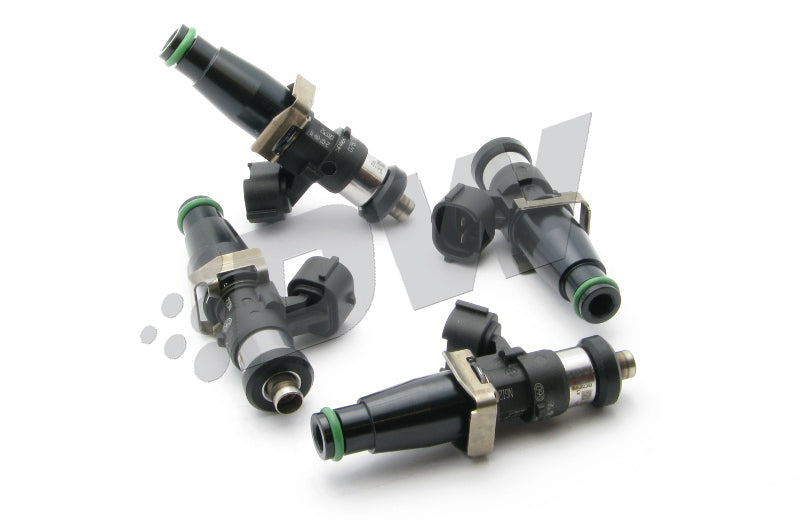

DeatschWerks set of 4 injectors 2200cc/min (high impedance) Fits Mitsubishi Lancer Evolution VIII
DeatschWerks set of 4 injectors 2200cc/min (high impedance) Fits Mitsubishi Lancer Evolution VIII
Couldn't load pickup availability
16S-03-2200-4
Product description
Set of 4 2200cc High Impedance Injectors for Mitsubishi Eclipse (DSM) 4G63T 95-99 and EVO 8/9 4G63T 03-06
- Drop-in fitment (includes set of 4 sumitomo pigtails)
- Every set is flow-balanced at 5 different pulse widths
- Custom report provided, including comprehensive battery offset data
- Not for use with MTBE
All DeatschWerks injectors feature the following:
- E85 compatibility
- Flow rates and set balancing in-house by DeatschWerks
- Flow balanced to within 1-2% (flow report included)
- Excellent spray pattern and atomization for optimized idle and tuning
- Technical assistance and tuning data available via phone or email
- 3-year comprehensive warranty
Download Injector Characterization Summary
Matched set of 4 injectors 2200cc/min
| Fuel Pressure Range | 40-100 psi |
| Minimum Pulse Width | 1.2 ms |
| Maximum Duty Cycle | 88% |
| Coil Impedance | 8.8 ohm |
| Injector Type | Bosch EV14 (compact) |
| Connector Type | sumitomo |
Nominal Static Flow Rate
|
PSI > |
43 |
58 |
70 |
80 |
90 |
100 |
|
cc/min |
2180 |
2768 |
3027 |
3035 |
3249 |
3400 |
|
lb/hr |
207.6 |
263.6 |
288.3 |
289 |
309.4 |
323.8 |
Please note: Flow rates listed are the nominal (normal minimum) rates for this injector part number. All sets are flow balanced. For actual flow rates of your set, please refer to the flow report that will accompany your order.
Offset in Milliseconds (Pressure vs Voltage)
|
PSI > |
43 |
58 |
70 |
80 |
90 |
100 |
|
8 |
1.57 |
1.81 |
1.96 |
2.08 |
2.25 |
2.37 |
|
9 |
1.32 |
1.55 |
1.69 |
1.80 |
1.94 |
2.05 |
|
10 |
1.10 |
1.28 |
1.43 |
1.53 |
1.66 |
1.75 |
|
11 |
0.89 |
1.04 |
1.21 |
1.31 |
1.41 |
1.50 |
|
12 |
0.72 |
0.85 |
1.03 |
1.11 |
1.20 |
1.29 |
|
13 |
0.56 |
0.69 |
0.87 |
0.96 |
1.04 |
1.12 |
|
14 |
0.44 |
0.58 |
0.75 |
0.83 |
0.92 |
1.00 |
|
15 |
0.33 |
0.50 |
0.66 |
0.74 |
0.84 |
0.93 |
|
16 |
0.25 |
0.45 |
0.60 |
0.69 |
0.80 |
0.89 |
